Macro Code Colors Resistance

Description
Macro Code Colors Resistance
Create the resistance, give the value or the color code, you can also calculate the total value with a serial or parallel resistance Macro version: 0.1 Last modified: 2025/12/12 FreeCAD version: 1.00 and above Download: Macro icon: [1] Author: Mario52
Author
Mario52
Download
Macro icon: [2]
Links
Macros recipes How to install macros How to customize toolbars
Macro Version
0.1
Date last modified
2025/12/12
FreeCAD Version(s)
1.00 and above
Default shortcut
None
See also
None

Description

Create the resistance, give the value or the color code, you can also calculate the total value with a serial or parallel resistance.

Temporary code for external macro link. Do not use this code. This code is used exclusively by Addon Manager. Link for optional manual installation: Macro


# This code is copied instead of the original macro code
# to guide the user to the online download page.
# Use it if the code of the macro is larger than 64 KB and cannot be included in the wiki
# or if the RAW code URL is somewhere else in the wiki.

from PySide import QtGui, QtCore

diag = QtGui.QMessageBox(QtGui.QMessageBox.Information,
    "Information",
    "This macro must be downloaded from this link\n"
    "\n"
    "https://gist.githubusercontent.com/mario52a/cfce0b58e62b036e910be0e503b14b80/raw/0b75dacf6d0a12885c7920b01f89490ba7664565/code_Colors_Resistance.FCMacro" + "\n"
    "\n"
    "Quit this window to access the download page")

diag.setWindowFlags(QtCore.Qt.WindowStaysOnTopHint)
diag.setWindowModality(QtCore.Qt.ApplicationModal)
diag.exec_()

import webbrowser
webbrowser.open("https://gist.githubusercontent.com/mario52a/cfce0b58e62b036e910be0e503b14b80/raw/0b75dacf6d0a12885c7920b01f89490ba7664565/code_Colors_Resistance.FCMacro")

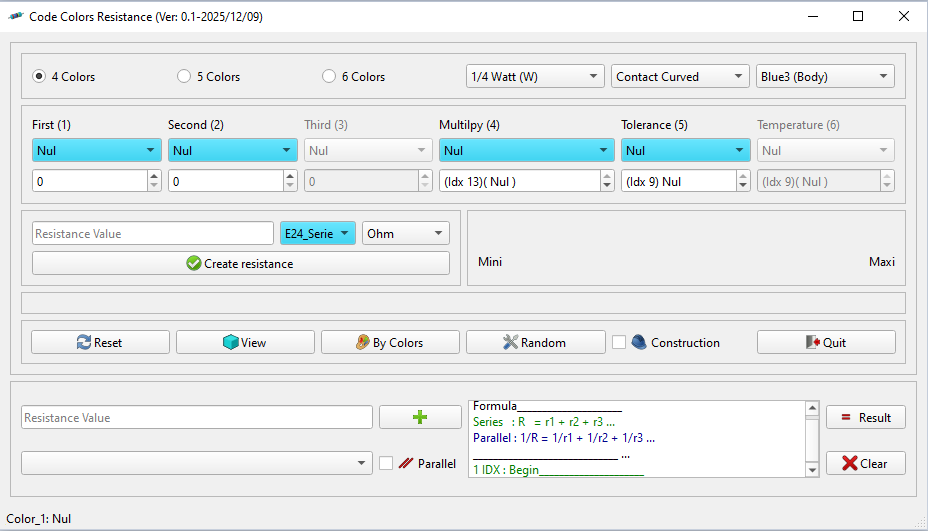

Main window code colors resistance

Usage

Version

ver: 0.1a : 12/12/2025 : add link and change line 812:

                    #obj_Obj[i].ViewObject.DiffuseColor = colors
                    FreeCAD.ActiveDocument.getObject(obj_Obj[i].Name).ViewObject.DiffuseColor = colors
                    FreeCAD.ActiveDocument.getObject(obj_Obj[i].Name).ViewObject.Transparency = 0
