CurvedShapes InterpolatedMiddle

CurvedShapes InterpolatedMiddle
Menu location
Curved Shapes → Interpolated Middle
Workbenches
CurvedShapes
Default shortcut
None
Introduced in version
-
See also
None

Description

Interpolates a shape between two 2D curves. The interpolation can be used to form a surface or a solid.

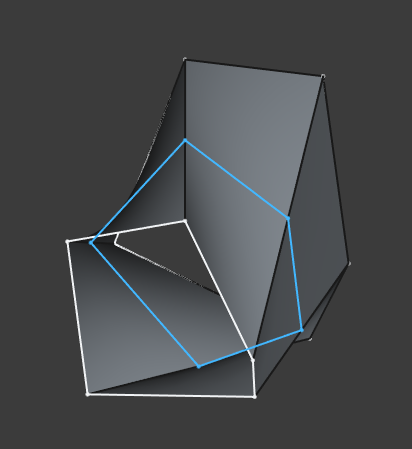

Image of a simple FreeCAD project with two sketches using the InterpolatedMiddle command

Usage

1. Select two sketches that shall be used.
2. There are several ways to invoke the command:
   • Press the Interpolated Middle button
   • Select the Curved Shapes → Interpolated Middle option from the menu

Notes

• Be aware of the draw order of lines in a sketch as it influences the result greatly.
• If you need a solid of the interpolation enable the "make Solid" property.

Properties

Interpolated Middle

• DataInterpolation Points: TODO
• DataLoft Max Degree: TODO
• DataMax Loft Size: TODO
• DataNormal Shape1: TODO
• DataNormal Shape2: TODO
• DataShape1: The first shape of the segment
• DataShape2: The last shape of the segment
• DataTwist: TODO
• DataTwist Reverse: TODO
• Datamake Solid: Creates a solid of the interpolation
• Datamake Surface: Creates a surface of the interpolation
