Macro Spreadsheet Dependency Inspector

Description

# This code is copied instead of the original macro code
# to guide the user to the online download page.
# Use it if the code of the macro is larger than 64 KB and cannot be included in the wiki
# or if the RAW code URL is somewhere else in the wiki.

from PySide import QtGui, QtCore

diag = QtGui.QMessageBox(QtGui.QMessageBox.Information,
    "Information",
    "This macro must be downloaded from this link\n"
    "\n"
    "https://raw.githubusercontent.com/2cv001/SpreadsheetDependencyInspector.FCMacro/main/SpreadsheetDependencyInspector.FCMacro" + "\n"
    "\n"
    "Quit this window to access the download page")

diag.setWindowFlags(QtCore.Qt.WindowStaysOnTopHint)
diag.setWindowModality(QtCore.Qt.ApplicationModal)
diag.exec_()

import webbrowser
webbrowser.open("https://raw.githubusercontent.com/2cv001/SpreadsheetDependencyInspector.FCMacro/main/SpreadsheetDependencyInspector.FCMacro")

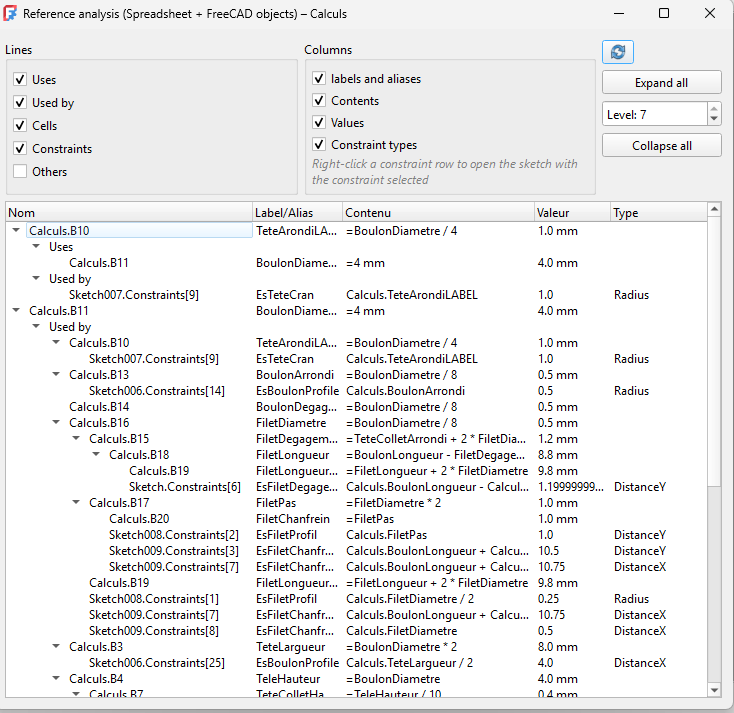

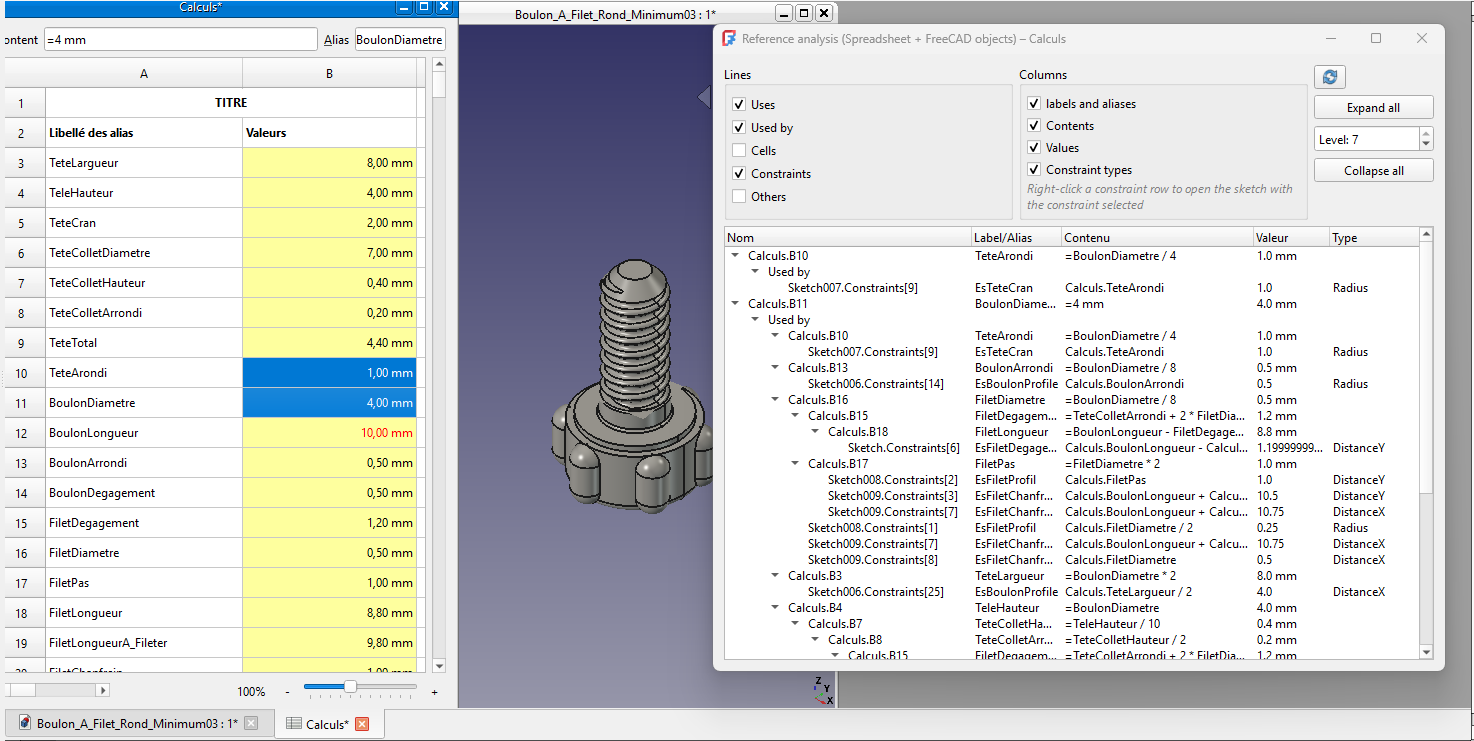

The macro Spreadsheet Dependency Inspector displays, for a selection of spreadsheet cells, all dependencies between spreadsheet cells and even between a cell and object properties. Everything is shown as an expandable tree that displays the cell name, its alias, its formula, and its value. It displays recursively:

• Cells that use other cells
• Cells that are used by other cells

The macro is multilingual, currently supporting English and French. The language used is the one you selected in your FreeCAD preferences.

As a complement to this macro you may also want to check Macro Sketch Constraint From Spreadsheet.

Examples of use

• Get an overall view of the dependencies between cells, and between cells and object properties.
• See the consequences of deleting a cell.
• Check whether a cell is unused.
• Verify and edit expressions.
• Assign aliases or labels.
• Verify and edit labels.
• Locate in the sketch a constraint that is linked to a spreadsheet cell.
• …

Usage

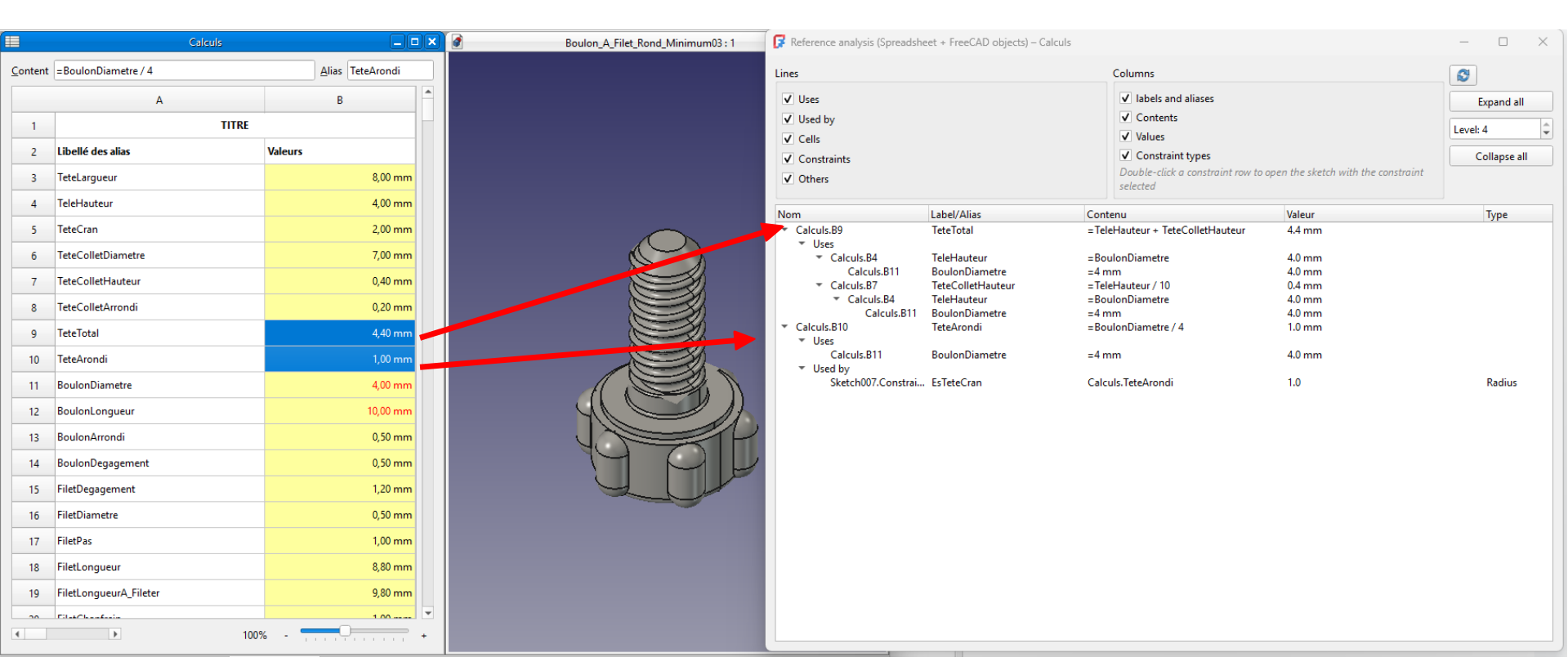

In a SpreadSheet, select one or several cells, then run the macro.

The refresh button image recalculates the analysis, for example after you modify a cell or change the selection.

The expand/collapse button lets you expand or collapse the whole tree. You can also do it branch by branch by clicking on the ▶ or ▼ symbols.

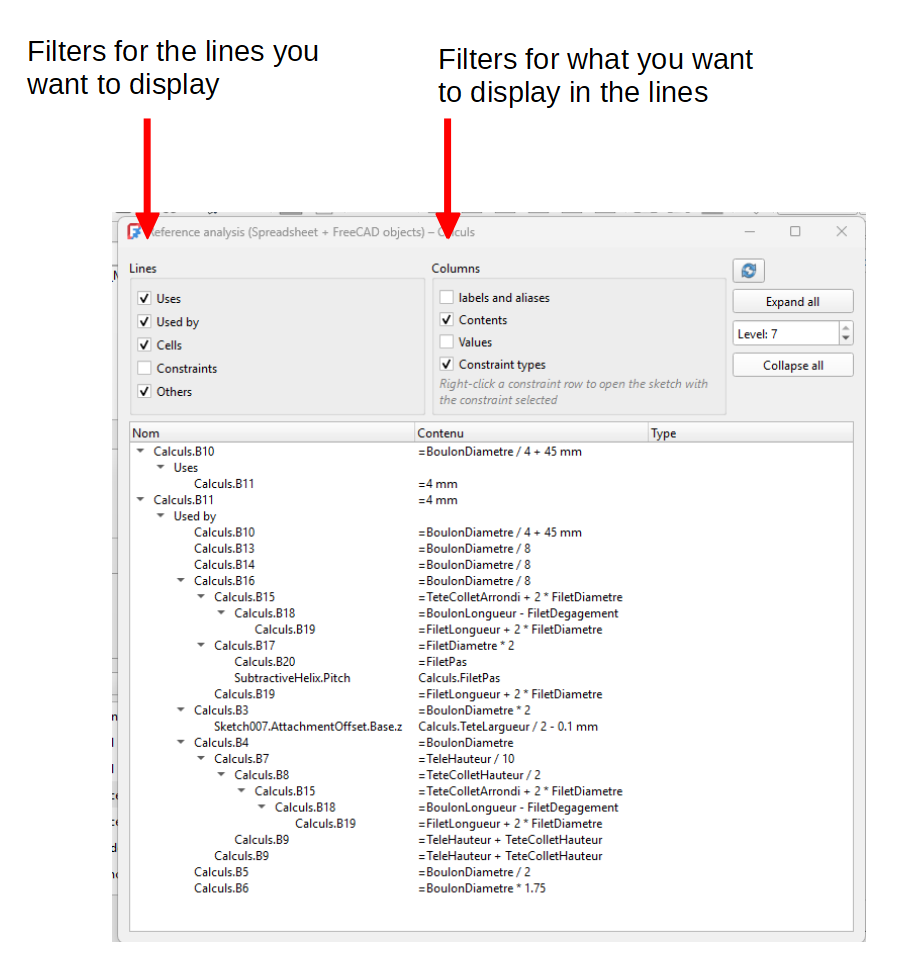

Choose the information you want to display:

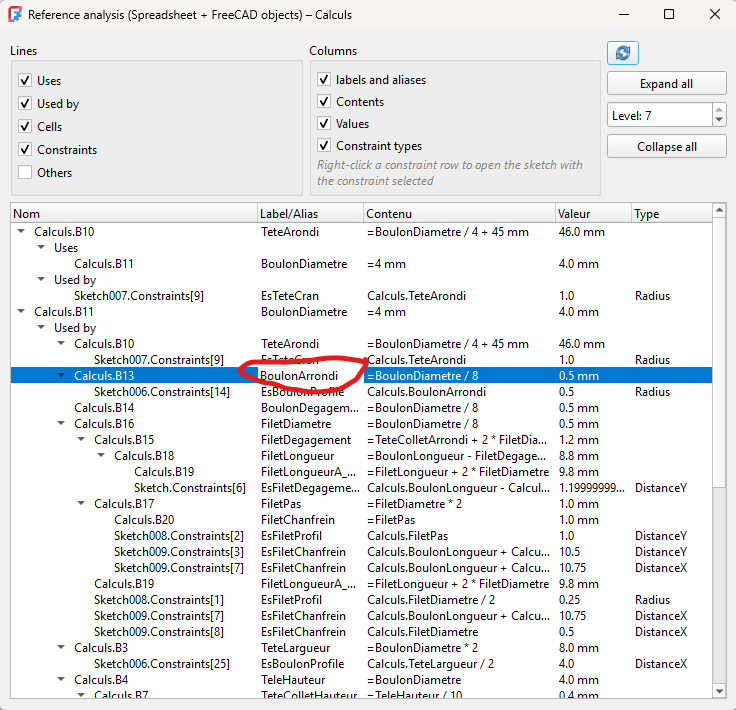

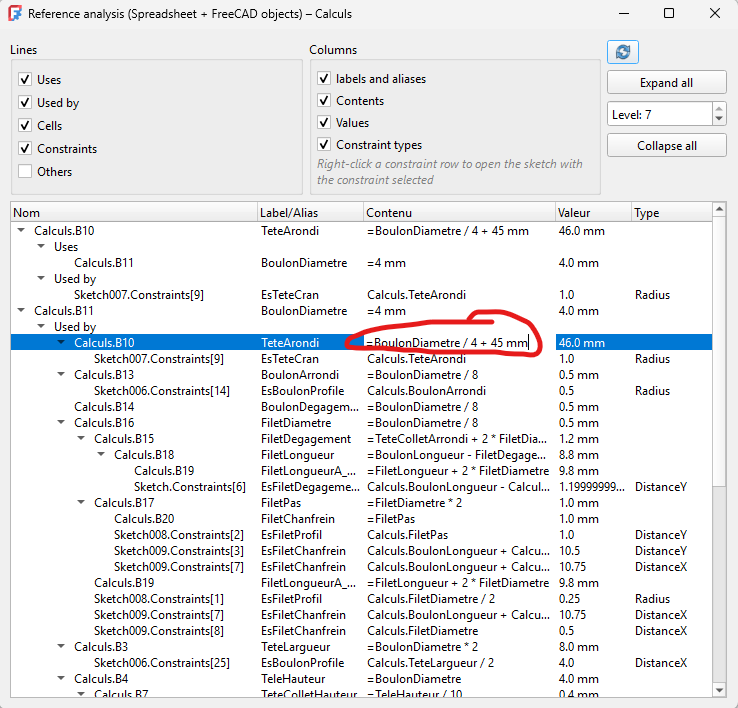

With a simple click, you can directly modify the labels or aliases and the content (expression).

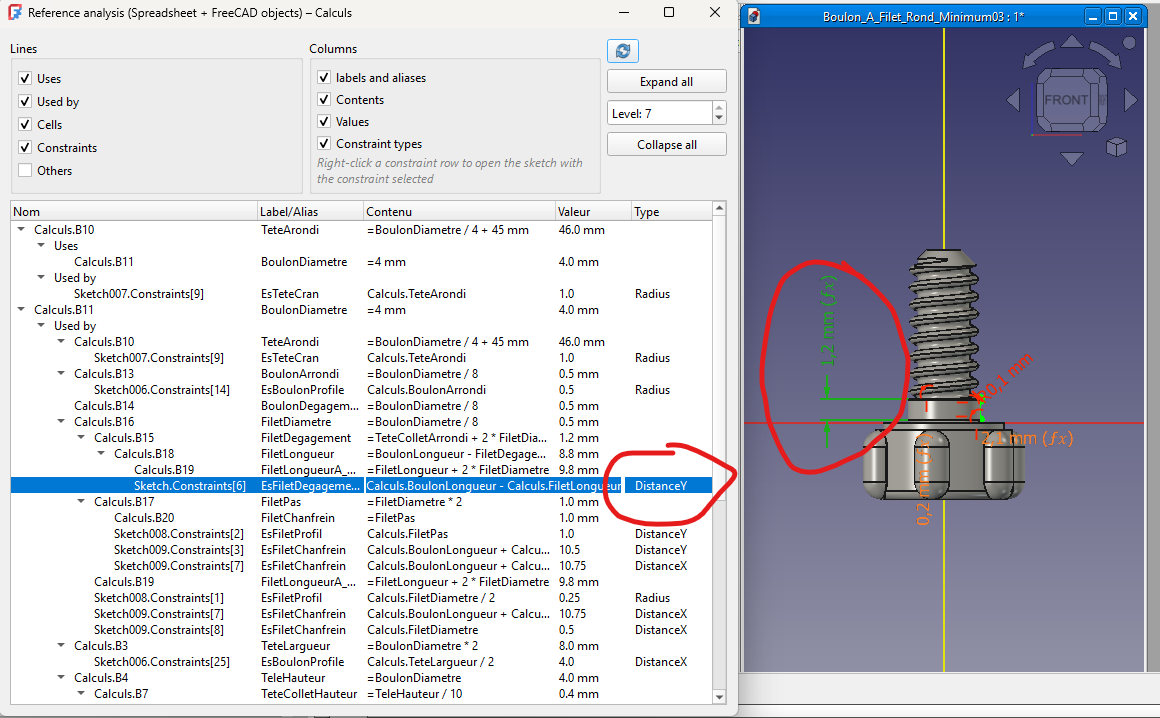

A double‑click on a constraint row opens the sketch containing that constraint and selects it to highlight it.

Forum discussions

In English: https://forum.freecad.org/viewtopic.php?t=105015

In French: https://forum.freecad.org/viewtopic.php?t=104883

Credits

Thanks to L'ami René for tests, ideas, the icon and the example project!

Thanks to flachyjoe for the insightful comments on the ergonomics.
