Templater ToleranceFrame
This documentation is not finished. Please help and contribute documentation.
GuiCommand model explains how commands should be documented. Browse Category:UnfinishedDocu to see more incomplete pages like this one. See Category:Command Reference for all commands.
See WikiPages to learn about editing the wiki pages, and go to Help FreeCAD to learn about other ways in which you can contribute.
|
|
| Menu location |
|---|
| Templater → Tolerance Frame |
| Workbenches |
| Templater |
| Default shortcut |
| None |
| Introduced in version |
| - |
| See also |
| None |
Description
The
Templater ToleranceFrame tool creates a tolerance frame or a datum frame as an SVG file and adds it to the selected view.

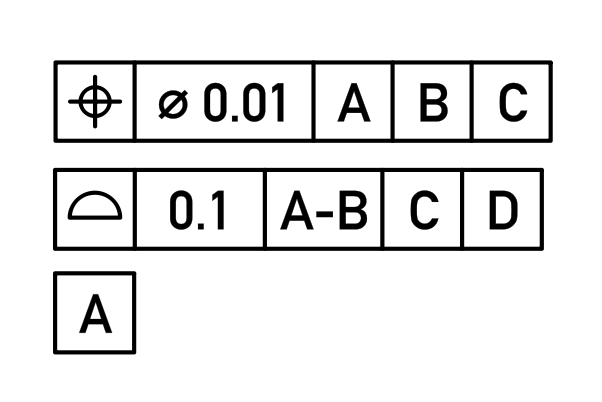

Tolerance frames and datum frame with editable entries
Usage
- Select a view or any geometry inside the view.
- There are several ways to invoke the tool.
- Press the
Tolerance Frame button. - Select the Templater → Tolerance Frame option from the menu.
- Press the

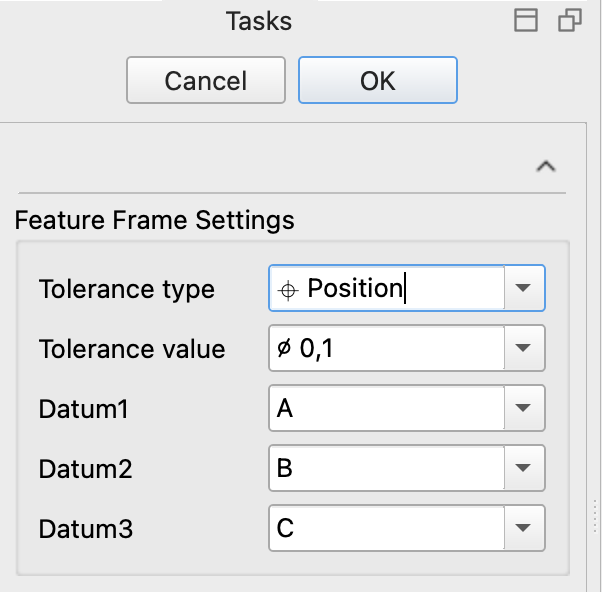

- The Feature frame settings task panel opens.
- Select a Tolerance Type for a tolerance frame, or type a single (upper case) letter for a datum frame.
- If a tolerance type was selected adjust the following values:
- (they will be ignored for a datum frame)
- Optionally edit the Tolerance value.
- Optionally edit each datum field, leave empty if not needed and succeeding fields will be ignored.
- Click Ok to close the task panel and finish the tool.
- A NewSymbol.svg file will be saved in the .../Mod/Templater/Resources folder and added to the selected view as a new FeatureFrame object.
- Drag the FeatureFrame object to its final position.
- Optionally adjust its values by editing the DataEditable Texts property in the Property View
Task Panel
- Tolerance type: Sets the tolerance symbol in the first cell of a tolerance frame, or the single letter in the only cell of a datum frame.
- Tolerance value: Sets the tolerance value in the second cell (and offers some predefined entries to have the diameter symbol at hand).
- Datum1: Sets the first datum marker in the third cell. Values in following cells will be ignored if empty.
- Datum2: Sets the second datum marker in the fourth cell. A value in following cell will be ignored if empty.
- Datum3: Sets the third datum marker in the fifth cell.
Notes
- The widths of the cells are calculated on creation and cannot be altered afterwards.
- All texts in the cells are editable, in contrast the tolerance synbols are hard coded svg elements and cannot neither be edited nor swapped.
Properties
See also: Property View.
A FeatureFrame is derived from a TechDraw Symbol, formally a TechDraw::DrawViewSymbol object and inherits all its properties.
