Macro DXF to 3D Converter/pl

Opis

Zautomatyzowane narzędzie do konwersji profili DXF do obiektów 3D poprzez definiowanie długości użytkownika.

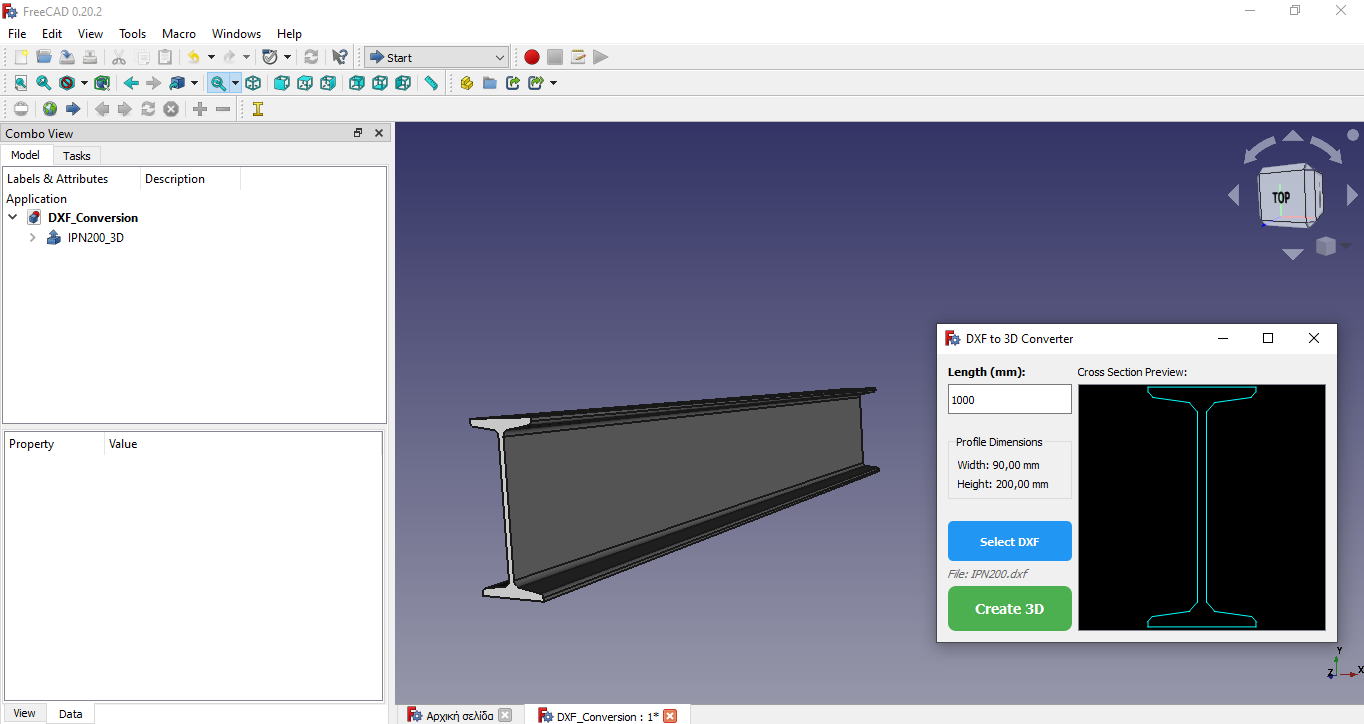

Konwerter DXF do 3D w akcji

Skrypt

__Name__ = "Macro DXF to 3D Converter"
__Comment__ = "Automated tool to convert DXF profiles into 3D objects by defining a custom length."
__Author__ = "Aris Drosiou"
__Version__ = "1.0.0"
__License__ = "LGPL-2.1-or-later"
__Web__ = "https://wiki.freecad.org/Macros"
__Wiki__ = "https://wiki.freecad.org/DXF_to_3D_converter"
__Icon__ = ""
__Help__ = "Select a DXF file, set the extrusion length, and click Create 3D."
__Status__ = "Stable"
__Requires__ = "FreeCAD >= 0.19"
__Communication__ = "FreeCAD Forum"

import FreeCAD as App
import FreeCADGui as Gui
import importDXF
import Draft
import Part
import Sketcher
import os
from PySide import QtGui, QtCore

class DXFTo3DPanel(QtGui.QWidget):
    """
    Main UI Class for the DXF to 3D converter tool.
    Handles DXF selection, 2D preview, and 3D extrusion logic.
    """
    def __init__(self):
        super(DXFTo3DPanel, self).__init__()
        self.selected_file = None
        self.initUI()

    def initUI(self):
        self.setWindowTitle('DXF to 3D Converter')
        self.setWindowFlags(QtCore.Qt.WindowStaysOnTopHint)
        self.setAttribute(QtCore.Qt.WA_DeleteOnClose)
        self.resize(400, 250)

        main_layout = QtGui.QHBoxLayout()

        # --- Left Control Panel ---
        left_panel = QtGui.QVBoxLayout()

        self.label_len = QtGui.QLabel('Length:')
        self.label_len.setStyleSheet("font-weight: bold;")
        left_panel.addWidget(self.label_len)

        self.length_input = QtGui.QLineEdit()
        self.length_input.setText("100")
        self.length_input.setFixedHeight(30)
        left_panel.addWidget(self.length_input)

        left_panel.addSpacing(15)

        self.dims_group = QtGui.QGroupBox("Profile Dimensions")
        dims_layout = QtGui.QVBoxLayout()
        self.width_label = QtGui.QLabel('Width: --')
        self.height_label = QtGui.QLabel('Height: --')
        dims_layout.addWidget(self.width_label)
        dims_layout.addWidget(self.height_label)
        self.dims_group.setLayout(dims_layout)
        left_panel.addWidget(self.dims_group)

        left_panel.addSpacing(15)

        self.btn_select = QtGui.QPushButton('Select DXF')
        self.btn_select.setFixedHeight(40)
        self.btn_select.setStyleSheet("background-color: #2196F3; color: white; font-weight: bold; border-radius: 5px;")
        self.btn_select.clicked.connect(self.select_dxf)
        left_panel.addWidget(self.btn_select)

        self.file_label = QtGui.QLabel('No file selected')
        self.file_label.setStyleSheet("font-style: italic; color: #666;")
        left_panel.addWidget(self.file_label)

        left_panel.addStretch()

        self.btn_create = QtGui.QPushButton('Create 3D')
        self.btn_create.setFixedHeight(45)
        self.btn_create.setStyleSheet("background-color: #4CAF50; color: white; font-weight: bold; font-size: 14px; border-radius: 8px;")
        self.btn_create.clicked.connect(self.create_part)
        left_panel.addWidget(self.btn_create)

        # --- Right Preview Panel ---
        right_panel = QtGui.QVBoxLayout()
        right_panel.addWidget(QtGui.QLabel('Cross Section Preview:'))

        self.scene = QtGui.QGraphicsScene()
        self.view = QtGui.QGraphicsView(self.scene)
        self.view.setBackgroundBrush(QtGui.QBrush(QtCore.Qt.black))
        self.view.setRenderHint(QtGui.QPainter.Antialiasing)
        self.view.setHorizontalScrollBarPolicy(QtCore.Qt.ScrollBarAlwaysOff)
        self.view.setVerticalScrollBarPolicy(QtCore.Qt.ScrollBarAlwaysOff)
        right_panel.addWidget(self.view)

        main_layout.addLayout(left_panel, 1)
        main_layout.addLayout(right_panel, 2)
        self.setLayout(main_layout)

        self.update_unit_label()

    def update_unit_label(self):
        q = App.Units.Quantity(1.0, App.Units.Length)
        unit_str = q.UserString
        symbol = "".join([c for c in unit_str if not c.isdigit() and c not in [".", ","]]).strip()
        self.label_len.setText(f"Length ({symbol}):")

    def resizeEvent(self, event):
        super(DXFTo3DPanel, self).resizeEvent(event)
        if not self.scene.itemsBoundingRect().isEmpty():
            self.view.fitInView(self.scene.itemsBoundingRect(), QtCore.Qt.KeepAspectRatio)

    def select_dxf(self):
        file_path, _ = QtGui.QFileDialog.getOpenFileName(self, "Select DXF", "", "DXF Files (*.dxf)")
        if file_path:
            self.selected_file = file_path
            self.file_label.setText(f"File: {os.path.basename(file_path)}")
            self.draw_preview(file_path)

    def draw_preview(self, path):
        self.scene.clear()
        original_doc = App.ActiveDocument
        try:
            temp_doc = App.newDocument("TempPreview")
            importDXF.insert(path, temp_doc.Name)
            pen = QtGui.QPen(QtCore.Qt.cyan, 1)
            pen.setCosmetic(True)

            all_shapes = []
            for obj in temp_doc.Objects:
                if hasattr(obj, "Shape"):
                    all_shapes.append(obj.Shape)
                    for edge in obj.Shape.Edges:
                        if len(edge.Vertexes) >= 2:
                            p1 = edge.Vertexes[0].Point
                            p2 = edge.Vertexes[-1].Point
                            self.scene.addLine(p1.x, -p1.y, p2.x, -p2.y, pen)

            if all_shapes:
                comp = Part.Compound(all_shapes)
                bbox = comp.BoundBox
                w_q = App.Units.Quantity(bbox.XMax - bbox.XMin, App.Units.Length)
                h_q = App.Units.Quantity(bbox.YMax - bbox.YMin, App.Units.Length)
                self.width_label.setText(f"Width: {w_q.UserString}")
                self.height_label.setText(f"Height: {h_q.UserString}")

            App.closeDocument(temp_doc.Name)
            if original_doc: App.setActiveDocument(original_doc.Name)
            QtCore.QTimer.singleShot(100, lambda: self.view.fitInView(self.scene.itemsBoundingRect(), QtCore.Qt.KeepAspectRatio))
        except Exception as e:
            self.file_label.setText(f"Error: {str(e)}")

    def create_part(self):
        if not self.selected_file: return
        try:
            val_txt = self.length_input.text().replace(',', '.')
            unit_part = self.label_len.text().split('(')[1].split(')')[0]
            q_len = App.Units.Quantity(f"{val_txt} {unit_part}")
            internal_length = q_len.Value

            doc = App.ActiveDocument if App.ActiveDocument else App.newDocument("DXF_Conversion")
            file_name = os.path.splitext(os.path.basename(self.selected_file))[0]
            clean_name = "".join(x for x in file_name if x.isalnum())

            objs_before = doc.Objects[:]
            importDXF.insert(self.selected_file, doc.Name)
            doc.recompute()

            new_objs = [o for o in doc.Objects if o not in objs_before]
            if new_objs:
                sketch = doc.addObject('Sketcher::SketchObject', clean_name + "_Sketch")
                Draft.make_sketch(new_objs, autoconstraints=True, addTo=sketch, delete=True)
                extrude = doc.addObject("Part::Extrusion", clean_name + "_3D")
                extrude.Base = sketch
                extrude.Dir = App.Vector(0, 0, internal_length)
                extrude.Solid = True
                doc.recompute()
                Gui.activeDocument().getObject(sketch.Name).Visibility = False
                Gui.SendMsgToActiveView("ViewFit")
        except Exception as e:
            print(f"Error during extrusion: {e}")

# --- UPDATED CLEANUP LOGIC ---
for widget in QtGui.QApplication.allWidgets():
    if widget.windowTitle() == 'DXF to 3D Converter':
        widget.close()
        widget.deleteLater()

steel_panel = DXFTo3DPanel()
steel_panel.show()
