Sketcher CreateText

Sketcher CreateText
Menu location
Sketch → Geometries → Text
Workbenches
Sketcher
Default shortcut
G T
Introduced in version
1.2
See also
None

Description

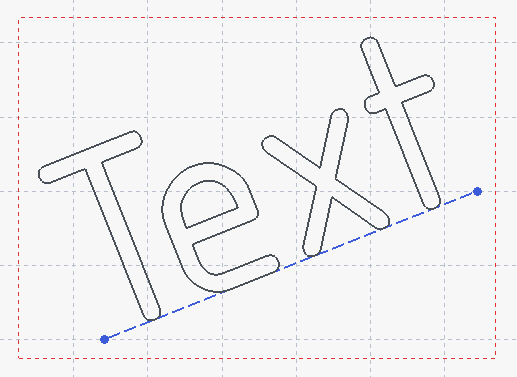

The Sketcher CreateText tool creates text geometries controlled by a Text constraint.

Usage

See also: Drawing aids.

Pos-OVP = Positional On-View-Parameters. introduced in 1.0

1. There are several ways to invoke the tool:
   • Press the Text button.
   • Select the Sketch → Geometries → Text option from the menu.
   • Right-click in the 3D View and select the Text option from the context menu.
   • Use the keyboard shortcut: G then T.
2. The cursor changes to a cross with the tool icon.
3. The Text Parameters section is added at the top of the Sketcher Dialog.
4. Optionally press the M key or select from the dropdown list in the parameters section to change the tool mode:
   • Width:
     1. Optionally select a different Font from the dropdown list.
     2. Optionally enter a Text.
     3. Pick a start point. Or with Pos-OVP: enter its X- and/or Y-coordinate.
     4. Pick an end point. Or with Pos-OVP: enter the length and/or angle of the text.
   • Height:
     1. Optionally select a different Font from the dropdown list.
     2. Optionally enter a Text.
     3. Pick a start point (bottom). Or with Pos-OVP: enter its X- and/or Y-coordinate.
     4. Pick an end point (top). Or with Pos-OVP: enter the height and/or angle of the text.
5. The text, a Text object, is created and applicable Pos-OVP based constraints are added.
6. If the tool runs in continue mode:
   1. Optionally keep creating texts.
   2. To finish, right-click or press Esc, or start another geometry or constraint creation tool.

Notes

• In the initial version the Pos-OVP entry field related to the y-coordinate only accepts a single digit.
