FEM ConstraintInitialTemperature
|
|
| Menu location |
|---|
| Model → Thermal Boundary Conditions and Loads → Initial Temperature |
| Workbenches |
| FEM |
| Default shortcut |
| None |
| Introduced in version |
| - |
| See also |
| FEM tutorial |
| Solvers |
|---|
| CalculiX, Elmer |
Description
Defines an initial temperature for a thermo-mechanical analysis.
introduced in 1.0: May also be used to prescribe a temperature field in a static analysis step (to simulate thermal expansion with no need for thermomechanical analysis with temperature boundary condition).

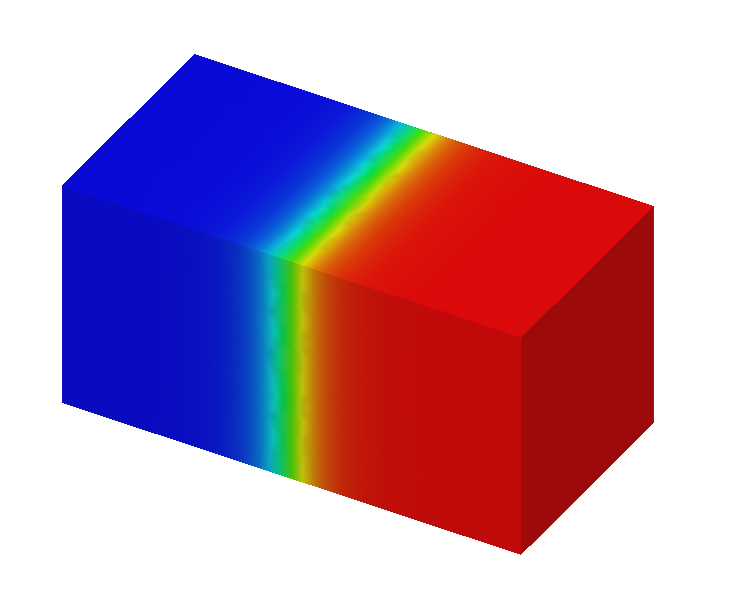

Two cubes with different initial temperatures exchanging heat
Usage
- There are several ways to invoke the command:
- Press the
Initial Temperature button. - Select the Model → Thermal Boundary Conditions and Loads → Initial Temperature option from the menu.
- Press the
- Enter an initial temperature value for the analysis.
Limitations
1.0 and below: This tool applies the initial temperature to all nodes in the FEA model - it's not possible to select individual regions.
Properties
- Datainitial Temperature: Initial temperature magnitude.
- DataReferences - introduced in 1.1: Regions to which the initial temperature is applied.
- DataEnable Final Temperature - introduced in 1.1: Enabled prescribed temperature field in a static analysis step.
- DataFinal Temperature - introduced in 1.1: Value of a prescribed temperature field in a static analysis step.
Notes
- This tool uses the *INITIAL CONDITIONS card in CalculiX.
- introduced in 1.1: The final temperature option uses the *TEMPERATURE card in CalculiX.
- Initial temperature has to be defined for all thermomechanical analyses performed with CalculiX, even the steady-state ones.
