FEM ConstraintCentrif
|
|
| Menu location |
|---|
| Model → Mechanical Boundary Conditions and Loads → Centrifugal Load |
| Workbenches |
| FEM |
| Default shortcut |
| None |
| Introduced in version |
| 0.20 |
| See also |
| None |
| Solvers |
|---|
| CalculiX |
Description
Defines a centrifugal force body load.

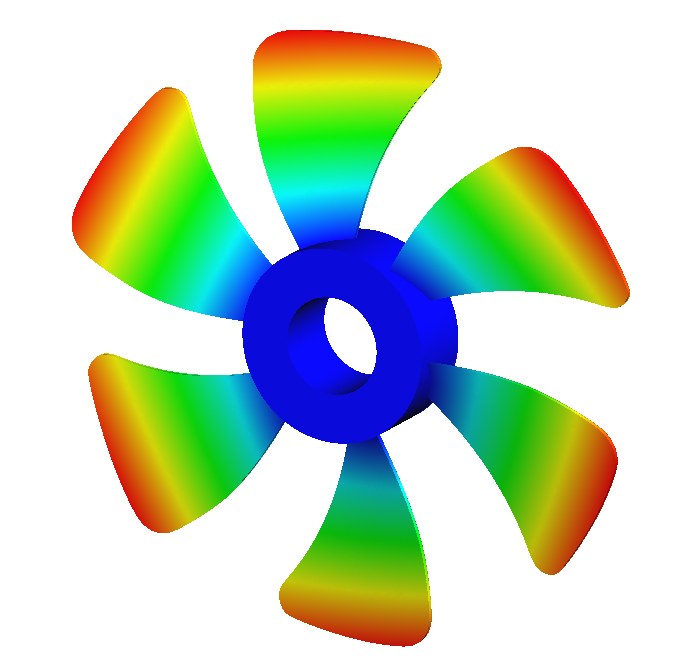

Fan subjected to centrifugal force load
Usage
- There are several ways to invoke the command:
- Press the
Centrifugal Load button. - Select the Model → Mechanical Boundary Conditions and Loads → Centrifugal Load option from the menu.
- Press the
- Specify the rotation frequency in Hz.
- Click on Add in the first Geometry reference selector window and select a solid to which the load will be applied in the 3D View. introduced in 1.1: To remove solids from the selection, press the Remove button.
- Click on Add in the second Geometry reference selector window and select an edge about which the rotation will occur in the 3D View. introduced in 1.1: To remove edges from the selection, press the Remove button.
Notes
- This feature uses the *DLOAD card in CalculiX.
