TechDraw FillTemplateFields
|
|
| Menu location |
|---|
| TechDraw → Page → Update template fields |
| Workbenches |
| TechDraw |
| Default shortcut |
| None |
| Introduced in version |
| 1.0 |
| See also |
| None |
Description
The
FillTemplateFields tool fills the editable text fields in the template of the current page with entries from document information.
Usage
- Before starting the tool, create a page with the selected template and add a view.
- There are several ways to invoke the tool:
- Press the
Update template fields button. - Select the TechDraw → Page → Update template fields option from the menu.
- Press the

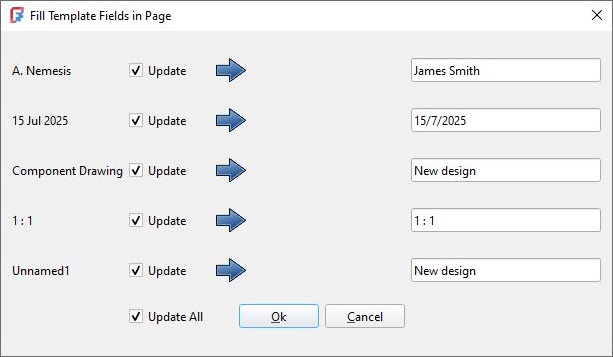

- The Fill Template Fields in Page window will appear.
- Deselect the Update checkboxes next to fields that you don't want to update. You can also use the Update All checkbox to enable and disable individual fields. Optionally, edit the strings shown on the right if you want to modify the data taken from document information.
- Press Ok to update the fields or Cancel to discard the changes.
Notes
- introduced in 1.0: There is also the autofill tool.
