Description

The FEM PostSpreadsheet function creates a table based on data from a selected pipeline or filter.

Usage

1. There are several ways to invoke the command:
   • Press the Create Table button.
   • Select the Results → Data Visualizations → Create Table option from the menu.
2. The Task panel is opened.
3. Press the Add data from button, select a pipeline or filter as a data source and one of two types of tables from the drop-down list:
   • add FieldData - lists values of a selected output variable for all nodes; if the One field for each frame checkbox is enabled, there is a separate column for each frame
   • add IndexOverFrames - lists values of a selected output variable for a node with a specified index (number) in each frame
4. Configure the table:
   • Press the middle button by default showing Index to set the output data source and index.
   • Press the 3rd button from the left by default showing default text to set the table name.
   • Press the rightmost button with X symbol to delete the table object.

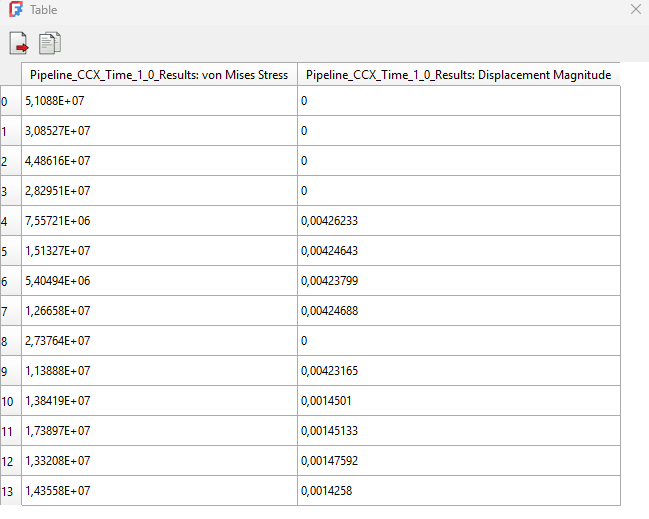

5. Press the Show table button to display the table.
6. Press the OK button to finish and close the task panel.
